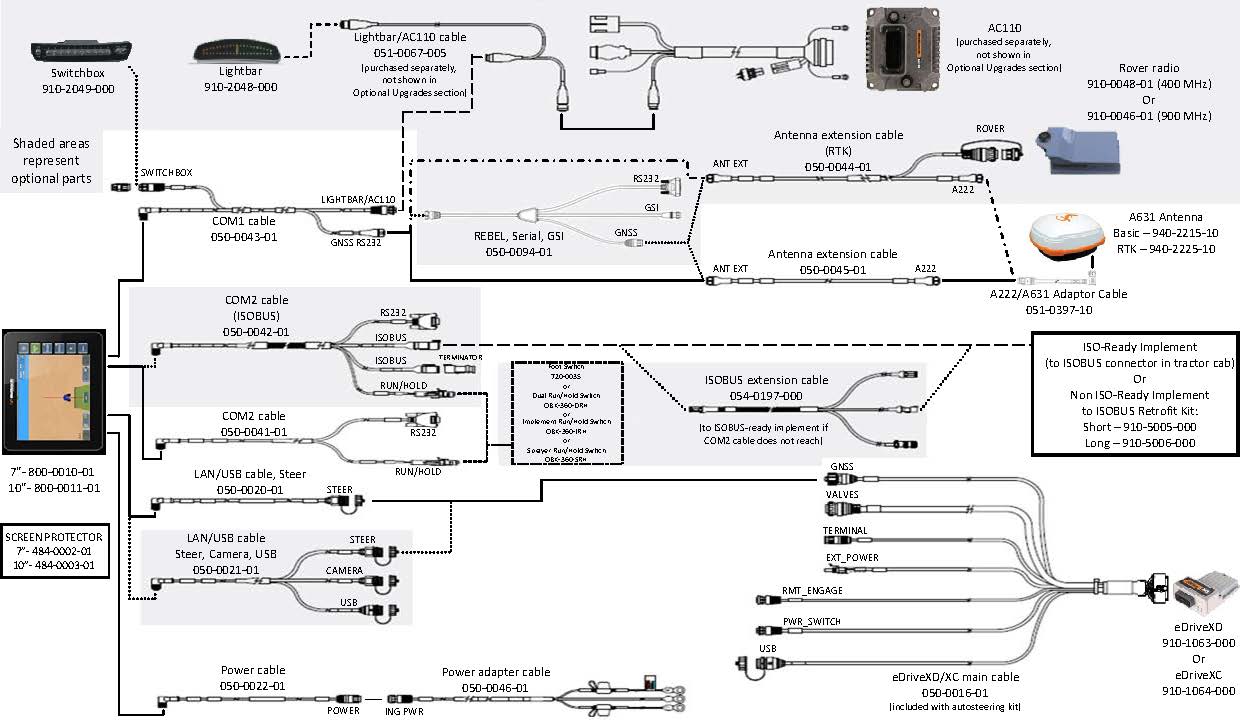

This wiring diagram is a generic cable diagram for hooking up to a Rebel. There is a link below the picture of a downloadable PDF version.
(Some cables and parts not shown.)
See below links to see general wiring diagram for eDrive setup:
eDriveXD General Wiring Connections
eDriveXC General Wiring Connection Diagram
