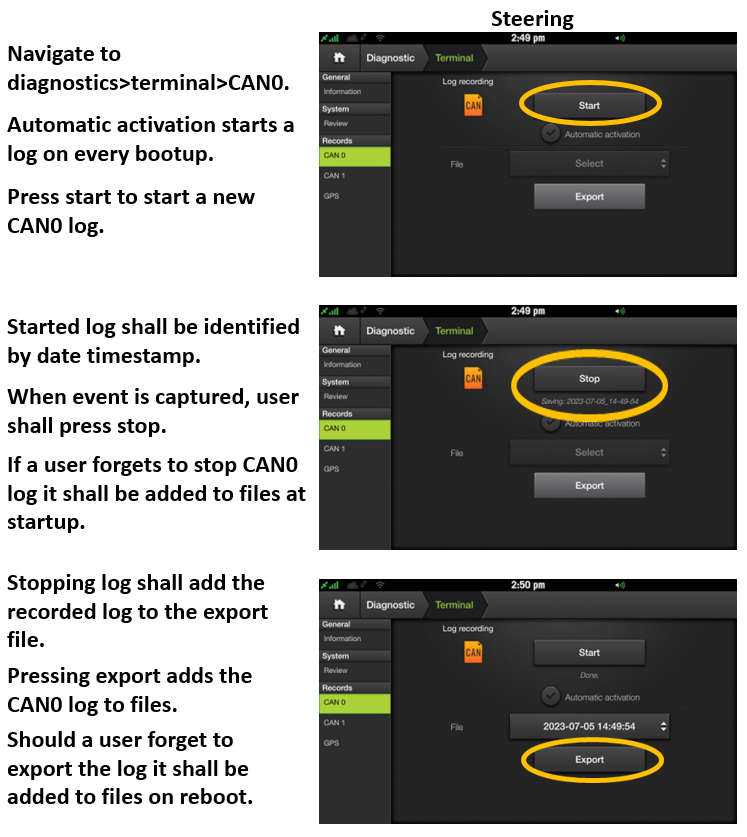

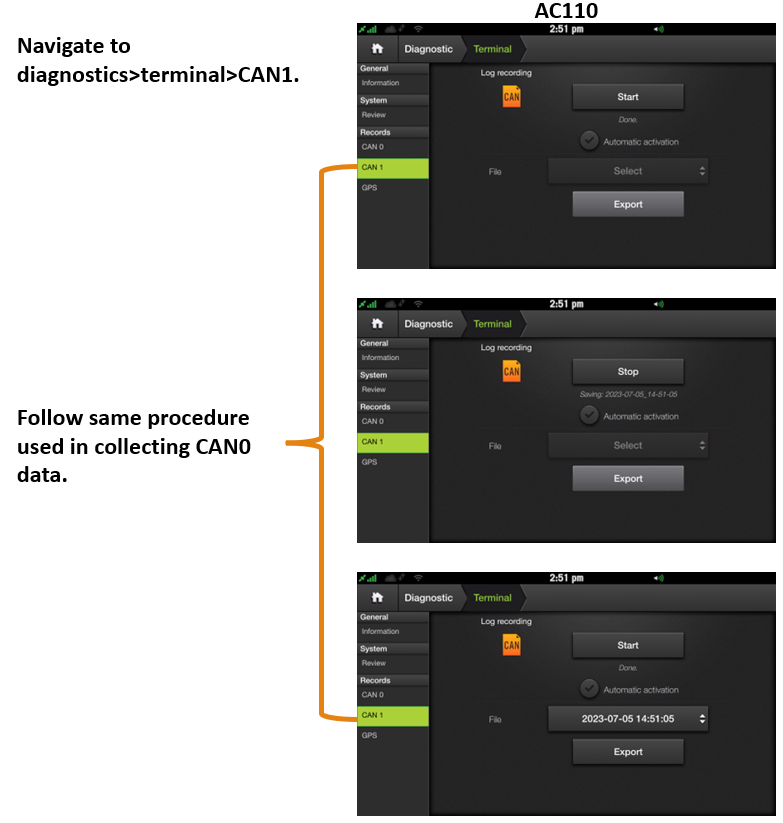

CAN0/CAN1 Logging

Joel Dietrich Sr. Technical Support - Outback Guidance

August 07, 2023 18:26

Follow

CAN-CAN1 Logging.pdf
200 KB Download
