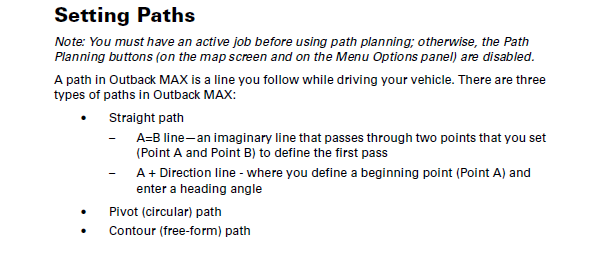

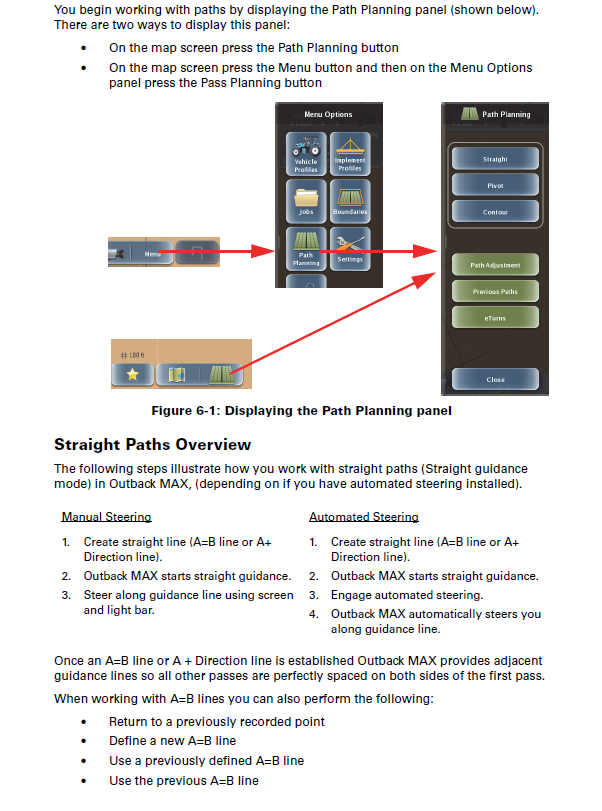

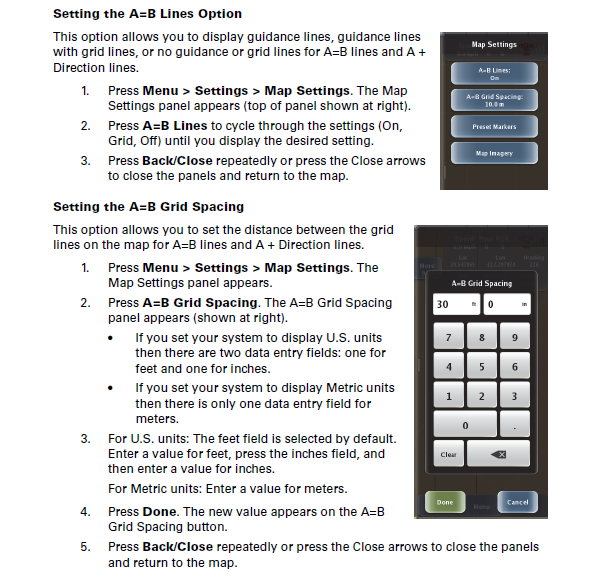

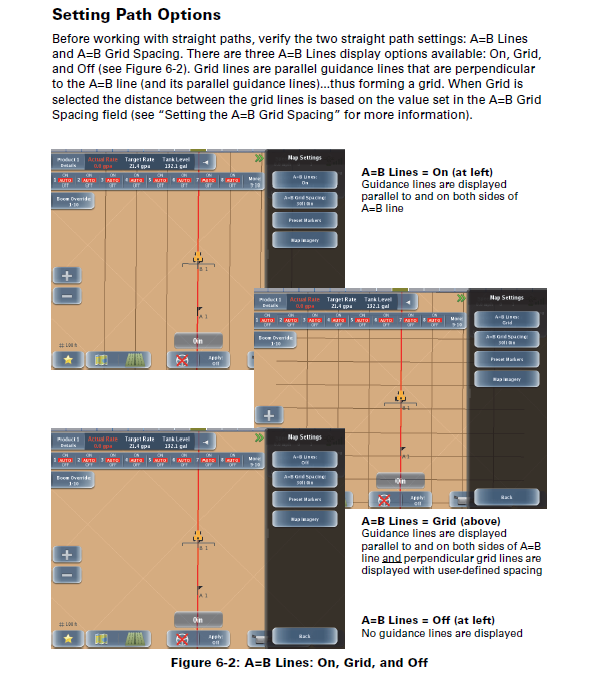

Setting Paths Basics for MAX

Joel Dietrich Sr. Technical Support - Outback Guidance
  • June 16, 2020 20:10
  • Updated
