These are basic troubleshooting tips for the typical calibration failures on an ESi2 with an eDriveXD. Please call Customer Support at 1-800-247-3808 for more information if these steps did not help resolve your calibration issue.

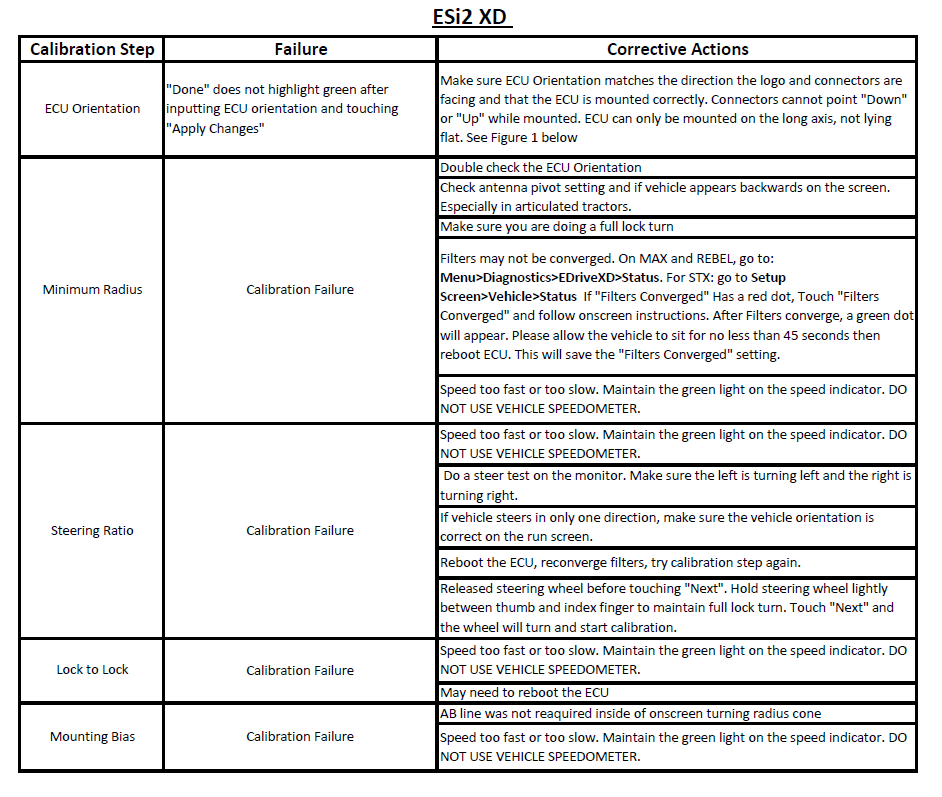

Basic Troubleshooting for ESi2 XD Calibration Failures
